Waycon Manufacturing's
CNC Machine Capabilities

Our extensive CNC machine shop is led by a group of highly experienced Red Seal machinists backed by commitment to quality and precision. In-house we have a total of 13 pieces of machinery including CNC lathes, mills, 4|5 Axis boring centres. We use advanced tooling and software MasterCam to enhance cutting quality and accuracy, ensuring strict adherence to project specifications. We can handle a vast spectrum of CNC machining projects achieving tolerances of +/- .0005 of an inch.

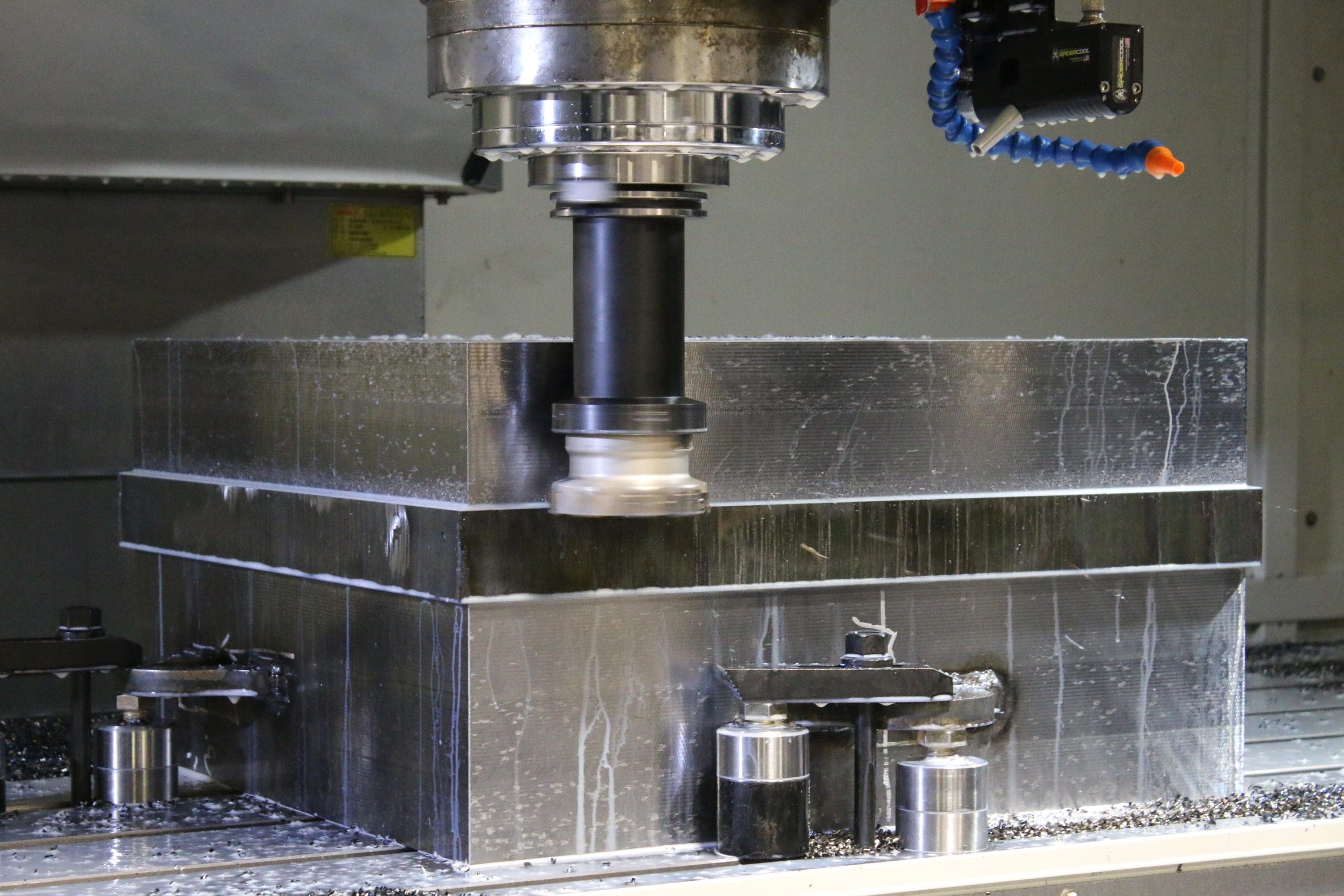

The Waycon machine shop includes CNC turning centres, CNC mills and four-Axis and five-Axis boring machines. Our equipment list includes:

CNC Turning Centres

Haas SL-20T

  • X-Axis Travel 8.45"
  • Z-Axis Travel 20"
  • CNC 2 Axis, turning dia 10.3"

Haas SL 30T

  • X-Axis Travel 11.30"
  • Z-Axis Travel 34"
  • CNC 2 Axis, chuck size 10"

Haas TL-3B

  • X-Axis Travel 16"
  • Z-Axis Travel 60"
  • CNC 2 Axis Big Bore

Challenger BNC 1860 Lathe

  • X-Axis Travel 10"
  • Y-Axis 4"
  • Z-Axis Travel 65"
  • CNC 2 Axis

Haas ST-35Y

  • X-Axis Travel 9.4"
  • Y-Axis 4"
  • Z-Axis Travel 32.5"
  • CNC 3 Axis
  • Y-axis milling, drilling and tapping

CNC Milling Machines

Haas VF 2B

  • X-Axis Travel 30"
  • Y-Axis 16"
  • Z-Axis 20"
  • CNC 4 Axis
  • Weight Capacity - 3,000 lbs.

Haas VF5/50

  • X-Axis Travel 50"
  • Y-Axis Travel 26"
  • Z-Axis Travel 25"
  • CNC 3 Axis
  • Weight Capacity - 4,000 lbs.

Haas VF7/50

  • X-Axis Travel 84"
  • Y-Axis Travel 32"
  • Z-Axis Travel 30"
  • CNC 4 Axis
  • Weight Capacity - 4,000 lbs.

Manford VHG 2200

  • X-Axis Travel 86.6"
  • Y-Axis Travel 39.3"
  • Z-Axis Travel 31.5"
  • CNC 3 Axis
  • Weight Capacity - 6,600 lbs.

CNC Boring Machine

Haas EC 1600 ZT Horizontal Machining Centre with Haas Controls

  • X-Axis Travel 64"
  • Y-Axis Travel 50"
  • Z-Axis Travel 32"
  • Table 360 degrees
  • CNC 4 Axis
  • Weight Capacity - 10,000 lbs.

Challenger HBM-4

  • X-Axis Travel 86.6"
  • Y-Axis Travel 63"
  • Z-Axis Travel 63"
  • W-Axis 21.6"
  • Table 360 degrees
  • CNC 5 Axis
  • Weight Capacity - 10,000 lbs.

Haas EC-500 Dual Pallet

  • X-Axis Travel 32"
  • Y-Axis Travel 25"
  • Z-Axis Travel 28"
  • W-Axis Travel 24"
  • Table 360 degrees
  • CNC 4 Axis
  • Weight Capacity - 2,000 lbs.

Manual Machines

Lathe Modern 560 X 2000

  • X-Axis Travel 21.5"
  • Z-Axis Travel 79"
  • Manual 7-1/2"

Mill Fort Worth VBM-5VL Vertical Milling Machine

  • X-Axis Travel 79"
  • Y-Axis Travel 24"
  • Z-Axis Travel 28"
  • Milling machine 3 Axis
Contact Us

Advantages of
CNC Machining

The advantages of working with the Waycon machining shop include:

Diverse Capabilities

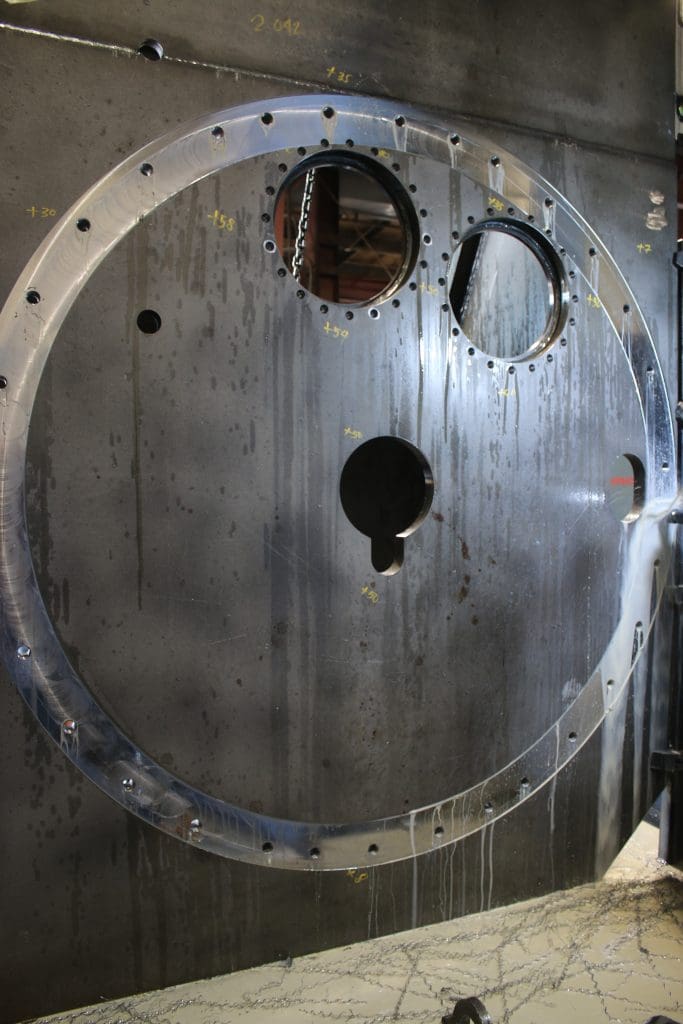

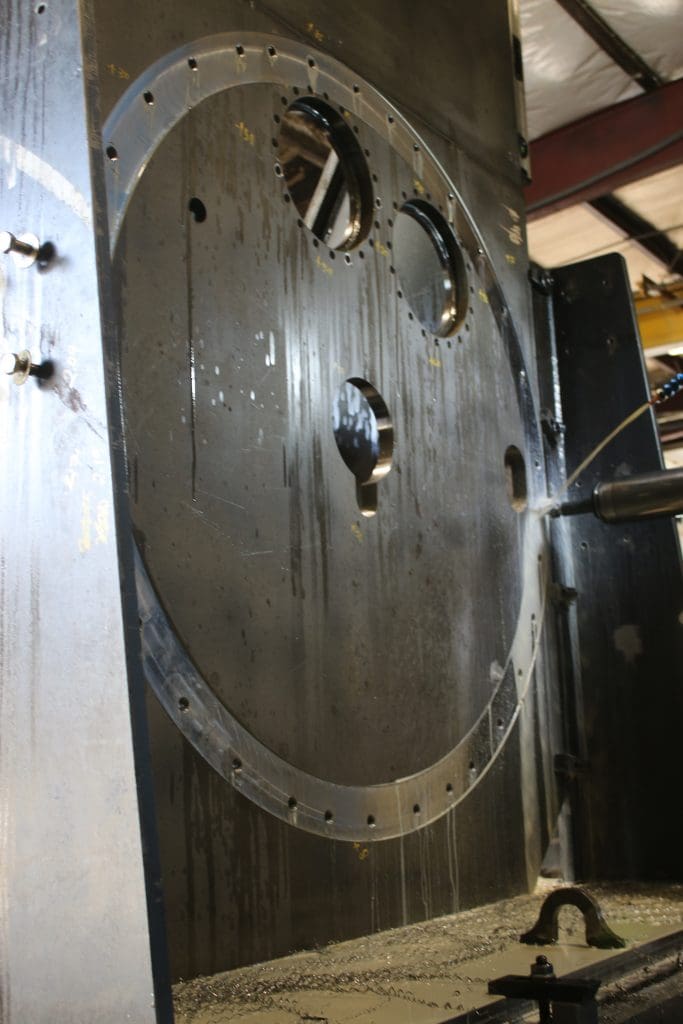

Our machining team can handle a wide range of machined parts - round, square, horizontal to vertical milling with endless ability. Our highly skilled CNC machinists think on their feet and can program your project on the spot. We use virtual math model data to directly produce tool path and G-code for high-quality CNC machining as well as use programs from SOLIDWORKS. We can machine from small parts up to 12 feet in diameter and 10,000 lbs, with 2 Axis to 5 Axis capability.

State-of-the-Art Tooling

We are well tooled so you never have to wait. Waycon's tooling quality and selection can take care of a large variety of project scopes and sizes at top speeds. We can push the limits of metal removal with our state-of-the-art machinery and tooling.

Precision & Repeatability

Our high-quality tooling allows us to hold tolerances of up to 0.0005 inches in diameter. Our machines are set up to take your part and continue manufacturing both short and long runs. We perform R&D development prior to build to ensure functionality.

Productivity & Quality

Our engineering software SOLIDWORKS and machining software MasterCam communicate seamlessly to enhance Waycon's productivity with continual information flow, enhancing our flexibility and accuracy in machining parts.

Partner with Waycon for
CNC Machining Services

Waycon Manufacturing offers extensive CNC machining services as part of our end-to-end industrial equipment solutions. Exceeding your expectations is our top priority.

When you become our client, we assign you a dedicated project manager who will serve as your single point of contact for feedback and progress updates. Our team is here to serve your CNC machining needs, whether you require a single service or an end-to-end fabrication project. We work to help customers improve quality, safety and efficiency. Contact our team today to discuss your CNC machining needs during a free consultation.
